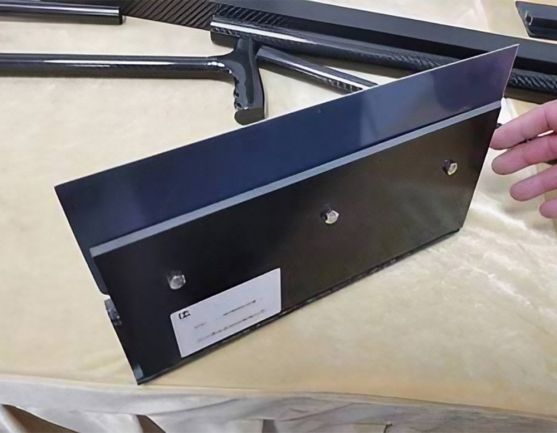

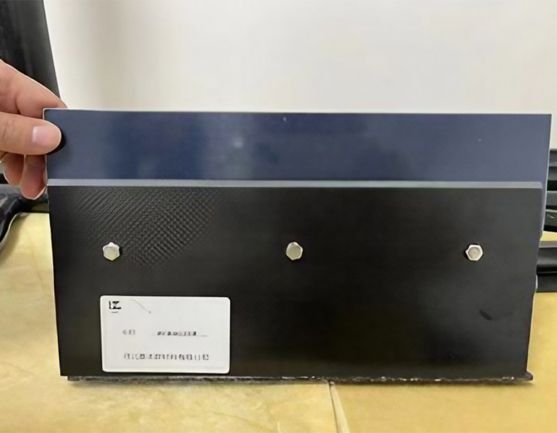

Pull-out Doctor Blade Holder

Product material & advantages:

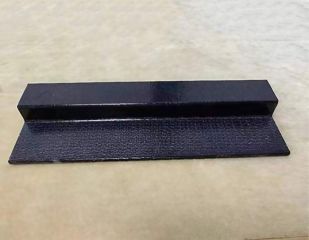

Made of carbon fiber. The utility model belongs to the technical field of scraper clamps and discloses a pull-out scraper clamp.

Its main technical features are: a seat plate with a scraper blade, an upper pressure plate is provided on the seat plate, and a lower pressure plate is provided below the seat plate.

The lower pressure plate is connected to the connecting plate. The bottom surface of the lower pressure plate is provided with a plurality of cylinders with rollers.

The top surface of the connecting plate is provided with slide rails that match the rollers and the cylinders.

The top of the lower pressure plate is provided with a positioning plate.

The positioning plate is provided with a first positioning hole.

The top of the slide rail extends out of the connecting plate. The top of the slide rail is provided with a second positioning hole that matches the first positioning hole.

The first positioning hole and the second positioning hole are arranged on the top of the slide rail.

The positioning holes are connected through the first bolt: the cylinder with the roller is connected to the lower pressure plate through the second bolt, and the slide rail is connected to the connecting plate through the third bolt.

The pull-out scraper clamp provided by the present utility model, Installation and replacement of scraper blades is quick and easy.
